A101 series gravity heavy conveyor rollers are used for gravity conveyors

GRAVITY STEEL CONVERYOR ROLLER (A101)  Product Description1. As the typical product in the gravity rolller series, it is widely applied, especially in the carton conveying area. e.g airport luggage handling and logistics distribution center.2. Precesion ball bearings are fixed in a steel stamped bearing

Featured Products

GRAVITY STEEL CONVERYOR ROLLER (A101)


Product Description

1. As the typical product in the gravity rolller series, it is widely applied, especially in the carton conveying area. e.g airport luggage handling and logistics distribution center.
2. Precesion ball bearings are fixed in a steel stamped bearing housing, which is sturdy, durable and can withstand larger loads than plastic bearings.
3. The requirements for the operating environment are not high, applicable temperature: -20ºC to +80ºC.
4. Be suitable for medium duty and heavy duty conveying, highest load capacity: 80kg to 450kg (According to the tube and shaft specifications).
5. Full anti-static design.




Product Parameters

Installation Method:

A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor
A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor
A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor
                            Spring Loaded                                                       Milling Flat                                                           Female Thread

MaterialTube Diameter & Thickness
Galvanized SteelΦ 38*1.2Φ 50*1.5Φ 50*2.0Φ 60*2.0Φ 60*3.0Φ 76*3.0Φ 76*3.75Φ 80*3.0Φ 89*3.0Φ 89*3.75
Stainless SteelΦ 38*1.2Φ 50*1.5Φ 60*2.0Φ 76*3.0

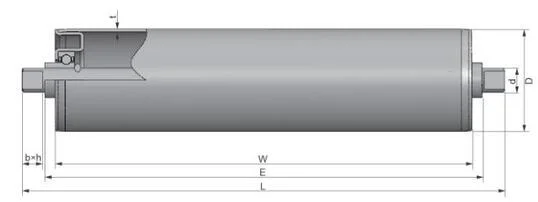

Tube Diameter(D)Shaft Diameter(d)EL
Φ 38Φ 12E=W+10L=W+32
Φ 50Φ 12/15E=W+10L=W+32
Φ 60Φ 12/15E=W+10L=W+32
Φ 76Φ 15E=W+10L=W+32
Φ 76Φ 20E=W+10L=W+40
Φ 80Φ 20E=W+10L=W+40
Φ 89Φ 20E=W+10L=W+40
      Φ12(M8*15)       Φ15(M10*20)        Φ20(M12*25)
Φ 38, 50, 60mm rollers are available with PVC soft cover (2mm, 3mm)

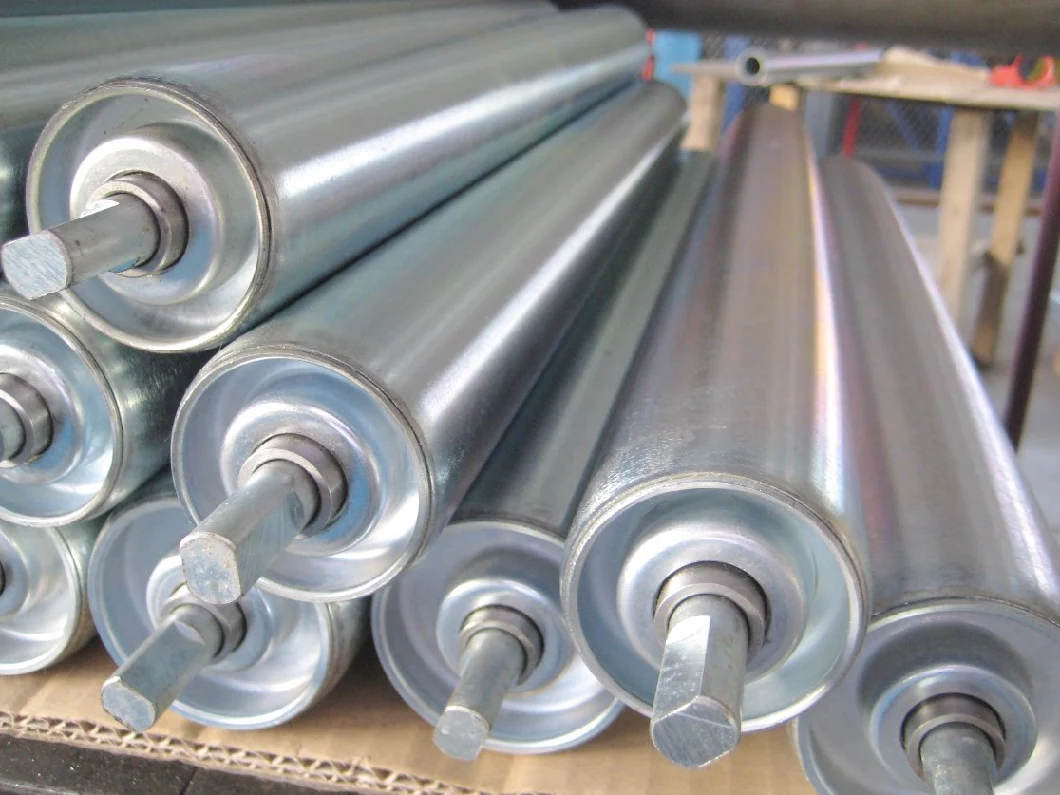

Detailed Photos



A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor
A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor
A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor

A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor
A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor
A101 Series Gravity Heavy Duty Conveyor Roller for Gravity Conveyor



Company Profile

HUZHOU RUIDA MACHINERY Co., Ltd, was established in 2000 for the purpose of technically serving the conveyor roller and conveyor components industries. With the experience of 20 years, we are the leading manufacturer and exporter of various kinds of conveyor component in China.

All of our conveyor rollers and components have good specifications and are widely used in machine factories of many conveyor system and so on, and it is exported to many countries and regions, including Eupore, America, Africa and Australia.

The conveyor roller products of RUIDA are mainly used in food, medicine, tobacco, clothing, EMS, logistics, manufacturing, rubber, airport ground service and other industrial circles. We offer more stable and creative roller products for you, likewise, we are committed to research customized services matching application, with a view of helping the industrial users to improve productivity and reduce the logistics costs.

We are always offering customer's excellent quality, competitive price, prompt delivery and after-sale service. And also welcomes production according to customer's samples or drawings.

RUIDA has always been adhering to the purpose of "Technology for Development, Quality for Market, Service for Reputation". We are committed to good service. We promise regular visiting customers, solving the problems if any timely, and all reasonable requirements from customers, we will be earnest the executive.



Packaging & Shipping

Packaging: Normally packed with wooden drums and cartons, other ways can be done according you.
Delivery Time:12Days ~ 45Days ( according to the amount)
