Automatic industrial roller shutter workshop warehouse door

high quality automatic industrial door Especially suitable for the buildings with narrow side walls.it is commonnly used as  the entry access door for workshop,warehouse and logistics center.1.  Industrial door lifting types2. Industrial door panel and hardware detailsPanel

Featured Products

high quality automatic industrial door

Especially suitable for the buildings with narrow side walls.it is commonnly used as  the entry access door for workshop,warehouse and logistics center.


1.  Industrial door lifting types
Automatic Industrial Roller Shutter Workshop Warehouse Door


2. Industrial door panel and hardware details

Panel Special design, strong and durable
Automatic Industrial Roller Shutter Workshop Warehouse Door    Automatic Industrial Roller Shutter Workshop Warehouse Door

Insulated door panels are constructed from galvanized steel sheets bonded together with CFC free polyurethane foam with integral thermal breaks to provide a U value of 0.40w/m2c.

The thickness is 40/50mm,which make the door panel has excellent mechanical properties, the size is stable, even under low temperature the panels' strength will not change.

structurePinch resistantNon pinch resistant
height 435mm  485mm  535mm530mm 610mm
panel's thickness40mm50mm
Thickness of the steel0.326-0.5mm
Density of the PU core40Kg/ m3
material external/internal skinsPPGI steel made of hot-dipped galvanized steel
 insulationPolyurethane foam (Free of Freon)
Surface texturesfront sideWood rain
back side orange peel
Patterns front sidestripe, H-line,micro-wave
 back sidestripe


3. Full set of hardware with safety device
The well dsigned and selected hardware system is made according to the new standard EN13241 which will offer the most safety to our customer.
Automatic Industrial Roller Shutter Workshop Warehouse Door

Automatic Industrial Roller Shutter Workshop Warehouse Door

4. Optional safety device

Photo beam protector
Automatic Industrial Roller Shutter Workshop Warehouse Door


One pair of photo beam protector will installed at both sides of the door, which will emit an invisible beam of light across the opening area ,if the bean is interrupted by anything ,the protector will make the door stop to closing and reverse back to its opening position.

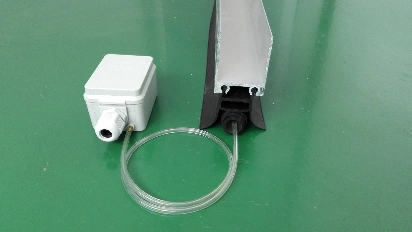

Air bag bottom seal
Automatic Industrial Roller Shutter Workshop Warehouse Door


On the bottom of the door there if the door touches something will be an air bag to make the door reveres when it is closing.

5. Industrial door motor

Automatic Industrial Roller Shutter Workshop Warehouse Door  Automatic Industrial Roller Shutter Workshop Warehouse Door

Industrial lifting door motors from Everbright, provide an integrated door system that comes with our guarantee for reliable performance when you need it most - every day. Built with convenience in mind, our automatic door operators also make it safer and easier to perform daily job duties so you can improve efficiency and close the door on your competition.
 E-KG50E-KG60E-KG50SE-KG120E-DC100
Input voltage220V/50Hz220V/50Hz380V/50Hz380V/50Hz380V/50Hz
Rated power300W500W400W700W650W
Torque30N.m60N.m50N.m120N.m100N.m
Max.lifting SQM18 SQM30 SQM25 SQM45 SQM35 SQM
PowerACACACACDC

6. Packing and shipping

The industrial door panel always be protected by the 5mm carton box and wrapping film to ensure a full protection of it.

Loding container will be done by our experienced workers who have the ability to make full use of the container and gurantee the security of the door. there ere are about 65 single door (2500*2140) in one 20ft container.For LCL order we could send it to any china sea port , the door will be protected by polywood box.

Automatic Industrial Roller Shutter Workshop Warehouse Door

7. Company

Everbright specialize in the Doors &Windows industry which is managed by an experienced team in production and trading.
From Europe to Asia , from America to Australia ,all of the products from Everbright enjoy high reputation for its quality, reasonable price and professional service.

Automatic Industrial Roller Shutter Workshop Warehouse Door

8. FAQ

1. What is you  policy of  the sample?

    Sample from Everbright is for free, but you need to pay for the freight.

    Freight will be deducted from the payment of the official order.

2.What is your delivery time?

   For regular order and standard color/Size , delivery time is 15 days after we receive the prepayment.

3.What is payment term?

   We accept T/T ,L/C at sight , west union and Paypal.

4.what is your warrenty time?

  For door panel and hardware , we offer 5 years warrenty time.

  For motors from us , we guarantee for 2 years.

5.do you offer OEM service?

  Yes we are.
