SPD Steel Conveyor Roller Set, Conveyor Idler, Roller Conveyor Discripton :
About our factory
SPD famous Conveyor Roller brand, 301 - 500 workers, 25000 m³non-dust workshop, Registered Capital: RMB 69,000,000, 20years experience, 35 Engineers and technicians , 28 Professional designers, 7 Senior engineers,18 engineers, two hours to Qingdao port.
Samples are acceptable. Rush order and large quantity are acceptable.
SPD Products details:
SPD Conveyor Roller Components Details:

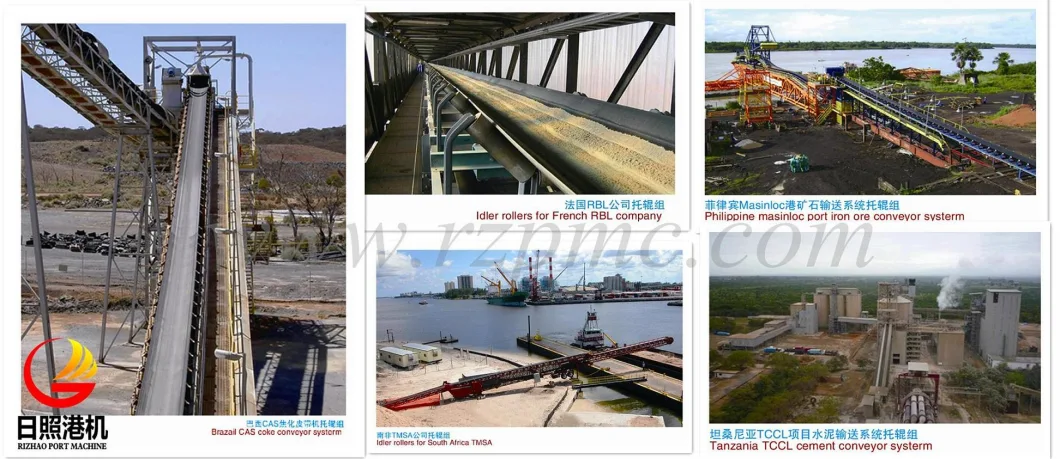

Some Whole Conveyor Projects we have done
SPD Conveyor Roller Certificate
SPD Steel Conveyor Roller Set, Conveyor Idler, Roller Conveyor details:
1. Brand: SPD
2, Lift time: 50000hours
3, Production capacity: as usual 600pieces/day.
4. Roller Diameter: 76-219mm.
5. Roller Length: 190mm to 3500mm.
6. Roller tube: Q235 carbon steel.
7. Shaft: 45# Cold drawing round steel
8. Bearing: Single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance
9. Bearing brand: SKF, NSK, LYC etc.
10. Seals: Grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal
11. Color: according to your requirement.
12. Finish: Painting/Rubber/Steel screw/Galvanized.
13. Welding: Mixed gas shielded arc welding end .
14. Professional designing and inspection team.
15. Standard: ISO/BS/JIS/DIN//CEMA/Australia
16, Package: Export standard plywood cases with waterproofing film
Main Features of SPD Steel Conveyor Roller Set, Conveyor Idler, Roller Conveyor
- The bearing housing and steel tube are assembled and welded with a concentric automatic, welding machine.
- Cuting of the steel tube and bearing is performed with the use of a digital aute device/machine/equipment.
- Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
- Roller and supporting components/materials are manufactured to ISO/BS/JIS/DIN//CEMA standard.
About Rizhao Port Machine Engineering Co., Ltd
RZPMC is a comprehensive enterprise which engages in design, manufacture, installation and maintenance of the bulk-handling equipments. It is the wholly-owned subsidiary of the listed governmental company Rizhao port Co., Ltd.
It has the Second-level Qualification of the Machinery&Electrical Equipments installation Enterprise.
Our steel structures and frames production capacity is 160, 000 tons/year, the main products are belt conveyor, stacker-reclaimer machine, car loader machine, un-loader machine, etc. Widely used in ports, mining, food, power plants and other industries. We begin to make belt conveyor from the year 1993, and has lots of large contracts of manufactures and installation projects. In the year of 2005, we rely on our own technological superiority, self-design and manufacture the storage capacity of 9000 T/H of the stocker, as a national origination.
Main Facilities & Capabilities
numberical control cutter machine, semi- manual cutter machines.
300T friction punching machine, 160T punching machine, mechanical plate shearing machine.
Plate roll equipment:
hydraulic four rolles plate roll equipment, mechanical three rolles plate roll equipment.
union melt welding, argon arc welding machine, carbon dioxide protection welding machine, AC arc welding machine, direct current arc welding machine.
Test and MeasureInstruments: PaintFilmThickness Gauge, Buluowei hardness machine, Theodolite Magnetic Particle Flaw Detector, Metal gage, Ultrasonic Flaw Detector.
electric furnace, carburizing furnace.
paint shop facilities:
pneumatic paint shop facility, high- pressure paint shop facility.
|Application||Coal mining industry, cement, steel, harbour etc.|
|Place of Origin||Rizhao City , Shandong Province , China|
|Material Feature||Water, Wear, Dust resistance|
|Management system||ISO 9001:2008,ISO 14001:2004,GB/T 28001-2001|
